The AeroGuard
product line.

Detection, electronic countermeasures, and UAV platforms — each system documented in full below.

01 · Detection / Surveillance

Passive RF detection systems.

ORACLE is AeroGuard's sensor backbone — the point where an unknown RF signature becomes a classified threat, a bearing, and a response cue.

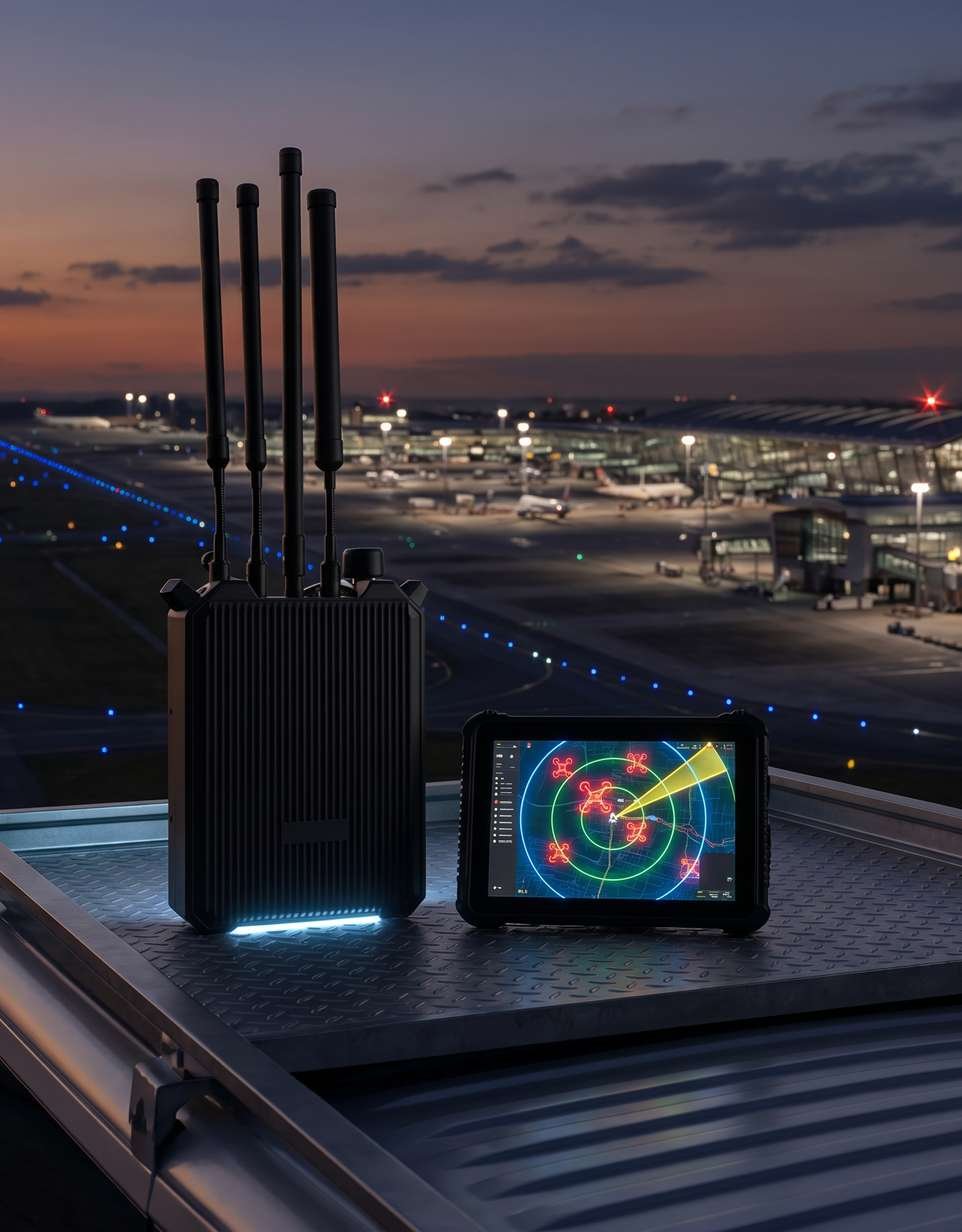

AeroGuard Oracle Field detection unit and tablet dashboard deployed on a rooftop
Detection / Surveillance

Oracle Field

Passive RF Detection & Drone Identification System

AeroGuard's flagship RF detection platform — a passive, multi-channel sensor array that identifies, classifies, and tracks commercial and military-grade UAS threats across the full electromagnetic spectrum. Built around KrakenSDR coherent direction-of-arrival technology and an AI-driven signal intelligence pipeline, Oracle Field delivers sub-2° bearing accuracy and real-time threat classification — with absolute zero RF emissions.

Where active-scanning systems betray their own presence, Oracle Field operates in complete electronic silence, monitoring the RF environment across multiple channels simultaneously with no duty-cycle blind spots. From critical infrastructure to forward operating bases and high-value event protection, it's the sensor layer the rest of the AeroGuard ecosystem builds on.

Key Capabilities

  • Passive detection — zero RF footprint
  • DJI OcuSync, FHSS, ELRS, ADS-B & Remote ID decoding
  • KrakenSDR 5-channel coherent DOA bearing
  • Sub-2° bearing accuracy at 7 km detection range
  • AI-assisted threat classification (>90% accuracy)
  • JWT-secured multi-role operator dashboard
  • Real-time WebSocket & REST API alert delivery
  • Modular HackRF SDR hardware core
  • Doppler velocity estimation module
  • IP65 ruggedised outdoor enclosure option

Technical Specifications

Detection RangeUp to 7 km (line of sight)
Frequency Coverage70 MHz – 6 GHz
Bearing Accuracy< 2° RMS (5-element array)
SDR Channels5 coherent channels (KrakenSDR)
ProtocolsOcuSync, FHSS, ADS-B, ELRS, Remote ID
Alert Latency< 500 ms to dashboard
Power Consumption< 25 W (standard config)
Operating Temp-20°C to +55°C
Enclosure RatingIP65 (outdoor option)
InterfaceWeb dashboard + REST / WebSocket API
DeploymentFixed mast / vehicle / tripod
OutputBearing, classification, alert, track log

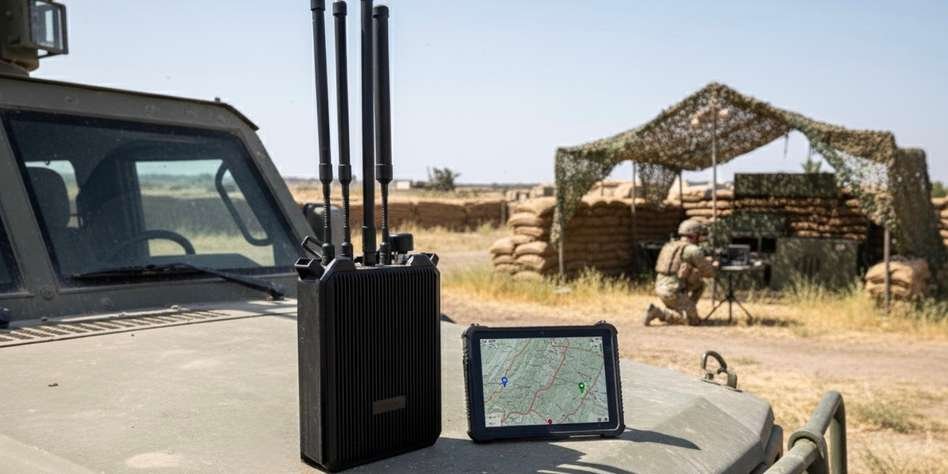

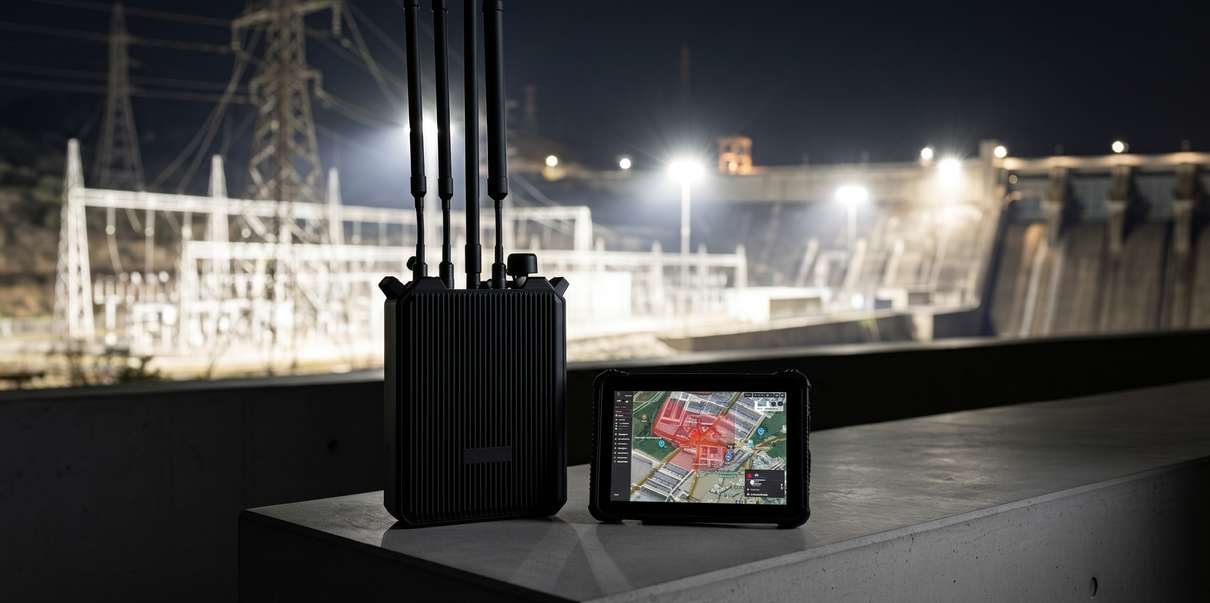

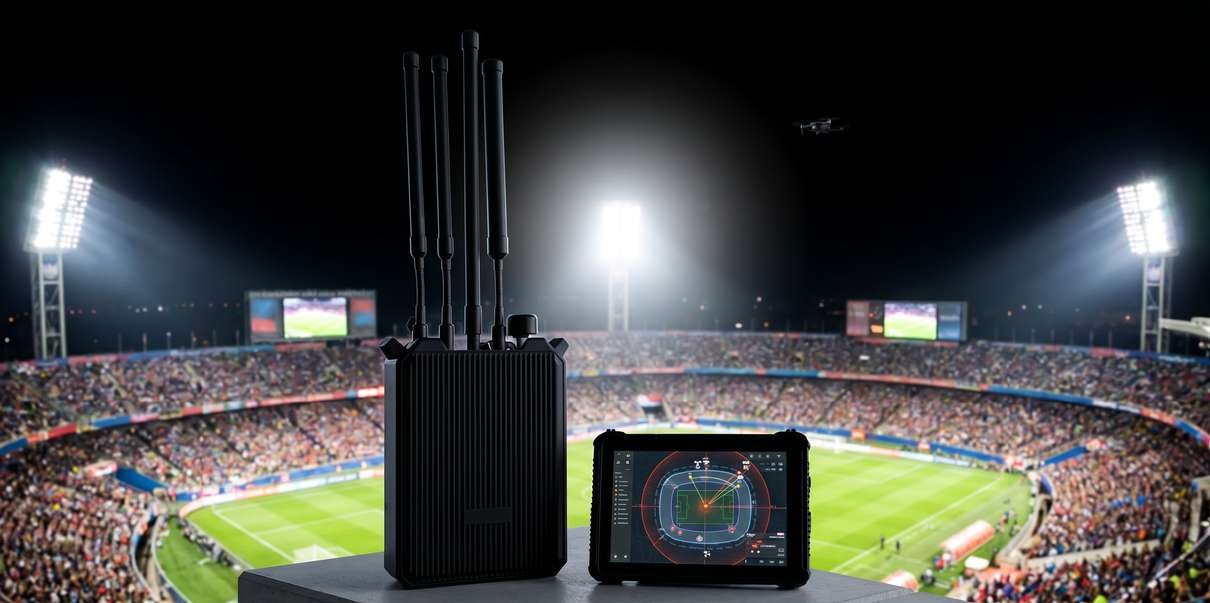

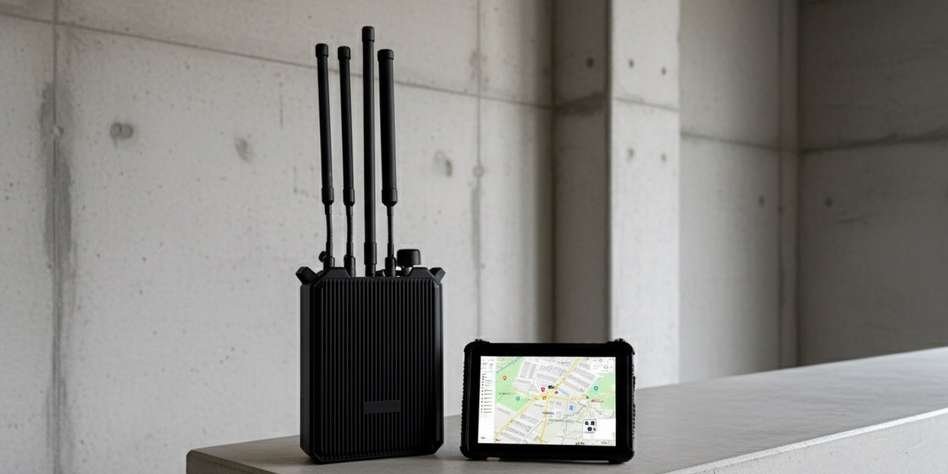

Oracle Field deployed at a stadium perimeter Oracle Field deployed near critical infrastructure at night Oracle Field unit on a concrete ledge Oracle Field deployed at a forward operating base
Detection / Surveillance

Oracle Flight

An Integrated Hub Bridging Detection Reach and Command Power

The Oracle Flight C1/C2 pushes detection range to 15 kilometers — identifying and tracking everything from commercial off-the-shelf drones to sophisticated military-grade UAVs. Offered in two configurations, C1 and C2, it's built for whatever the mission calls for: fixed-site protection, mobile deployment, or rapid-response scenarios.

What sets Oracle Flight apart is integrated command and control of friendly drones from the same portable suitcase platform — closing the gap between threat detection and active response. The system is operational within minutes of arrival, equally at home at a forward operating base or a major public event.

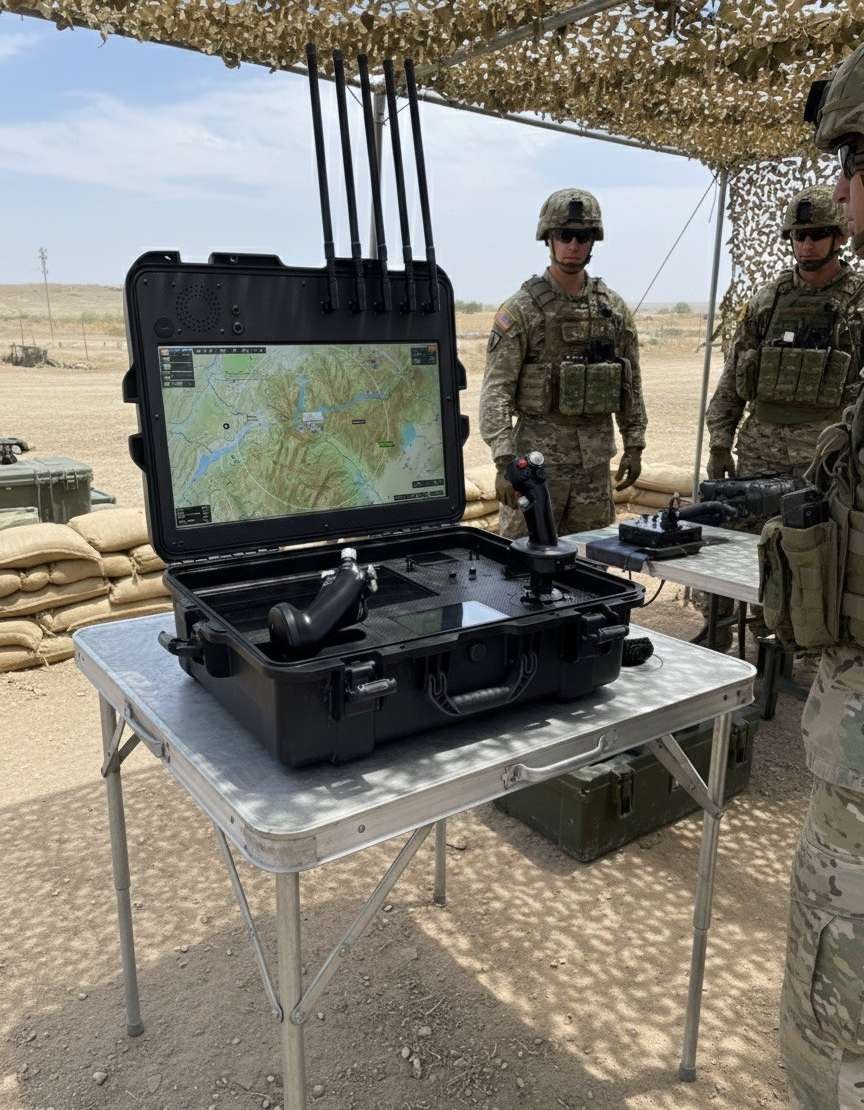

Oracle Flight suitcase ground control station operated by two soldiers in the field

Key Capabilities

  • 15-kilometer detection range for comprehensive drone surveillance
  • Broad compatibility with various drone models
  • Portable suitcase design for rapid deployment
  • Integrated drone control for owned units directly from the system
  • Enhanced airspace security in civilian and military settings
  • Quick threat neutralization capability
  • Easy to deploy and operate in any environment
  • Versatile application for surveillance and defense operations

Technical Specifications

Frequency Range433/800/912 MHz, 1.4/2.4/5.2/5.8 GHz (customizable)
Detection RadiusUp to 15 km (open air, line of sight)
Device Size650 × 500 × 240 mm
Battery LifeApprox. 8 hours
Antenna TypeHigh-gain omnidirectional
Operating Temp-40°C to 60°C
Protection RatingIP67
Simultaneous Drone TrackingUp to 30 drones
Route Tracking10 routes
Receiver Sensitivity-115 dB (chip optimum) / -95 dB (field test)
Spatial Coverage360° azimuth / elevation
Location AccuracyWithin 3 m

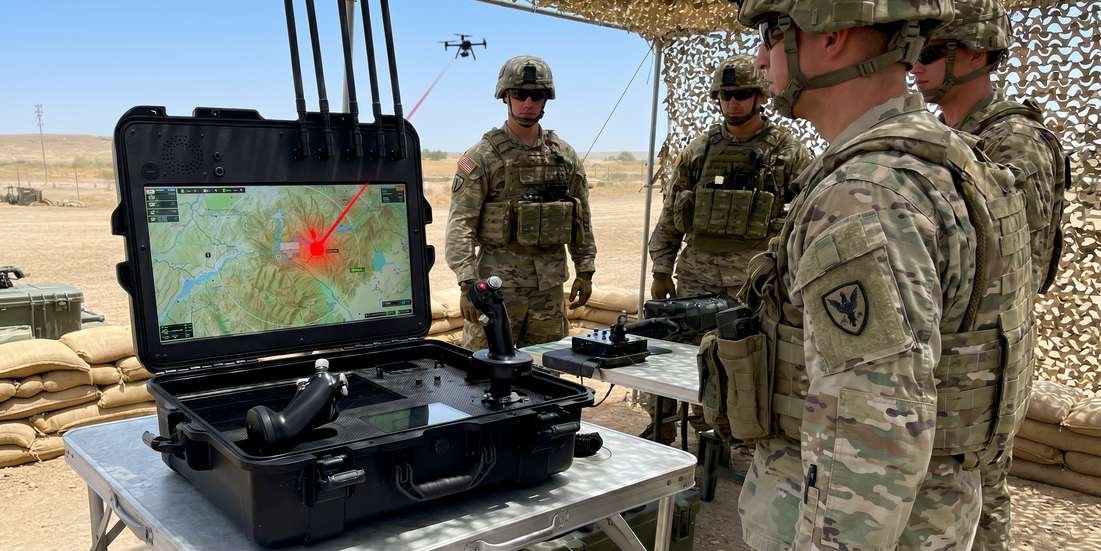

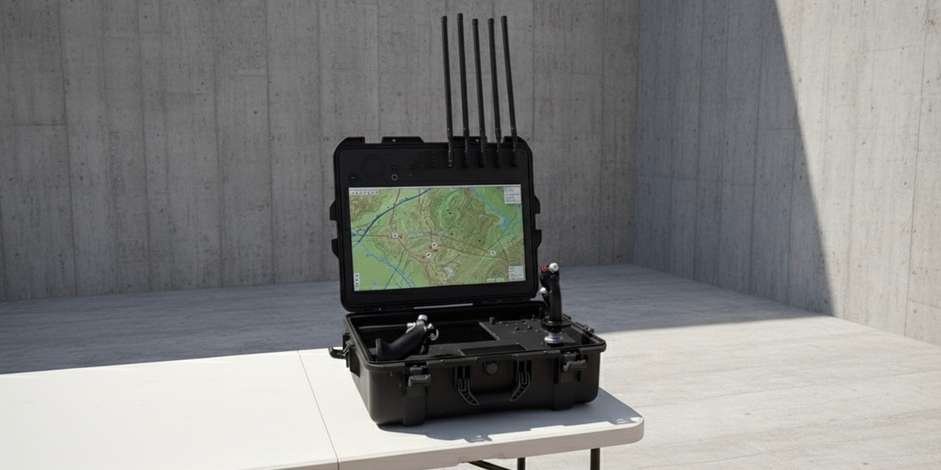

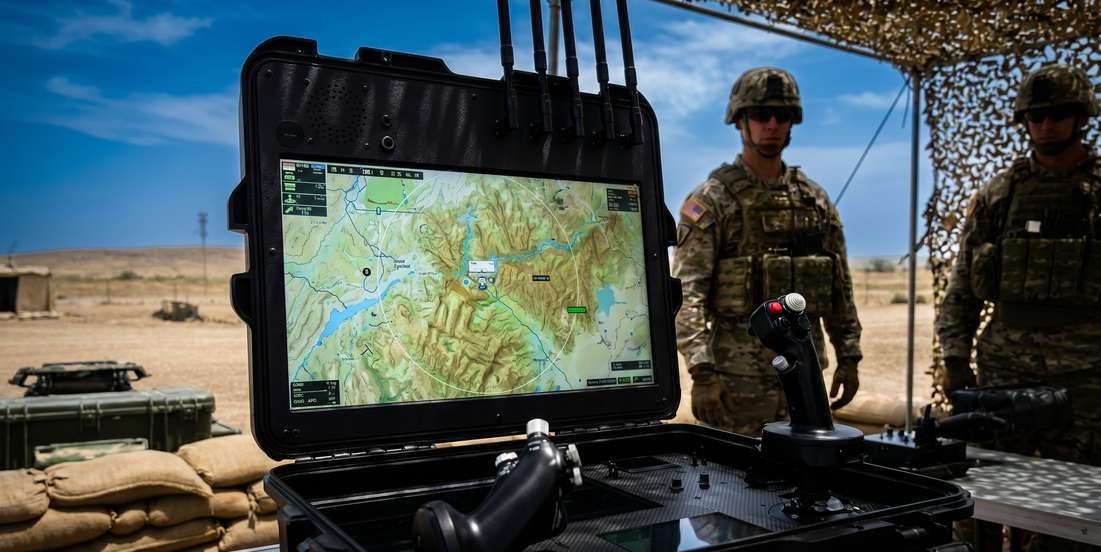

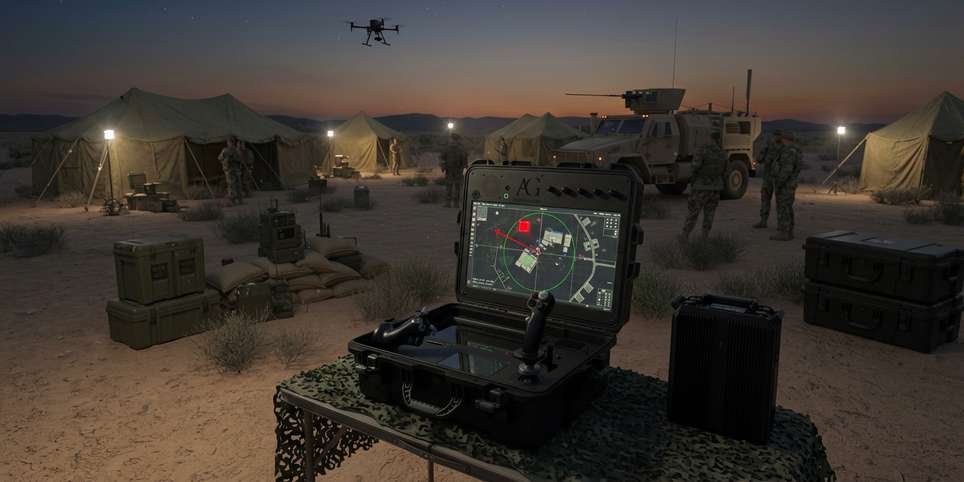

Oracle Flight case open showing map display and drone control joystick Soldiers operating Oracle Flight with a threat marked on screen Oracle Flight deployed at a desert forward operating base at dusk Oracle Flight case closed, standing on a table
02 · Electronic Countermeasures

Soft-kill jamming systems.

Where detection ends, disruption begins — Alpha and Omega deny the control link, producing controlled, predictable outcomes with no kinetic risk.

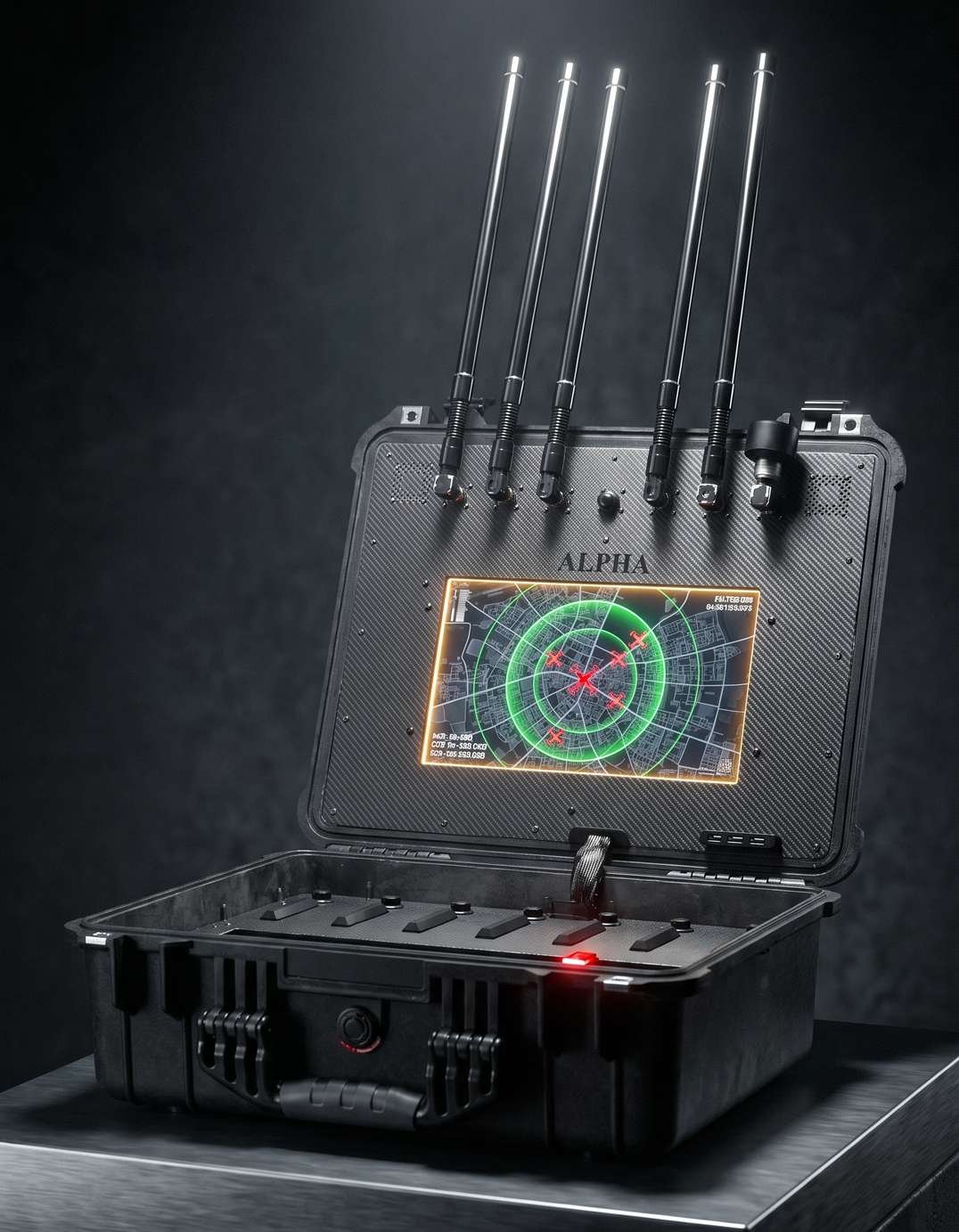

Alpha jammer case open showing antenna array and radar display
Electronic Countermeasures

Alpha Smart Jammer

Fixed-Site, High-Power Multi-Spectrum Jamming Platform

Alpha is AeroGuard's premier fixed and transportable soft-kill countermeasure — a high-output jamming system built to deliver sustained, area-wide airspace denial over an entire protected site, not just a single target. Constructed from aerospace-grade carbon fibre, it ships and stores fully self-contained in a compact trolley case for rapid relocation.

Alpha disrupts the most prevalent drone communication and navigation frequencies simultaneously across multiple channels, engaging several drones at once so coordinated or swarm-style incursions can't overwhelm the defensive response. A lithium iron phosphate battery with external power provision keeps it running for continuous, around-the-clock coverage.

Key Capabilities

  • 360° omnidirectional or sector-steered coverage
  • Simultaneous multi-band jamming across all UAS frequencies
  • ORACLE-integrated automated activation (< 1 sec)
  • Scalable output: 50 W to 200 W per band
  • IP67 hardened outdoor enclosure — all-weather
  • Remote management via secure network interface
  • Whitelist mode for authorised friendly UAS
  • UPS-backed — continuous uninterrupted operation
  • SNMP / MQTT monitoring & alerting integration
  • Modular antenna array — scalable coverage zones

Technical Specifications

Coverage Pattern360° omni or directed sector
Target Bands433 MHz, 900 MHz, 2.4 GHz, 5.8 GHz, GPS L1/L2
Effective RangeUp to 3 km radius (200 W config)
Output Power50–200 W per band (scalable)
Activation Latency< 1 second (ORACLE-triggered)
Power SupplyMains 220 V AC + UPS battery backup
Enclosure RatingIP67 outdoor
Operating Temp-30°C to +60°C
Network InterfaceEthernet / 4G LTE / fibre
DeploymentRooftop / mast / hardened bunker
ManagementWeb UI + SNMP + MQTT
ORACLE IntegrationAutomated trigger on threat classification

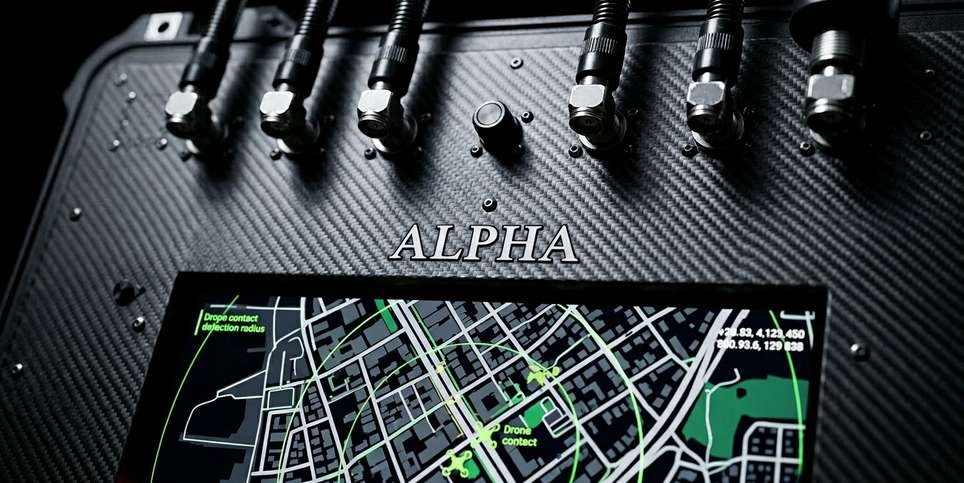

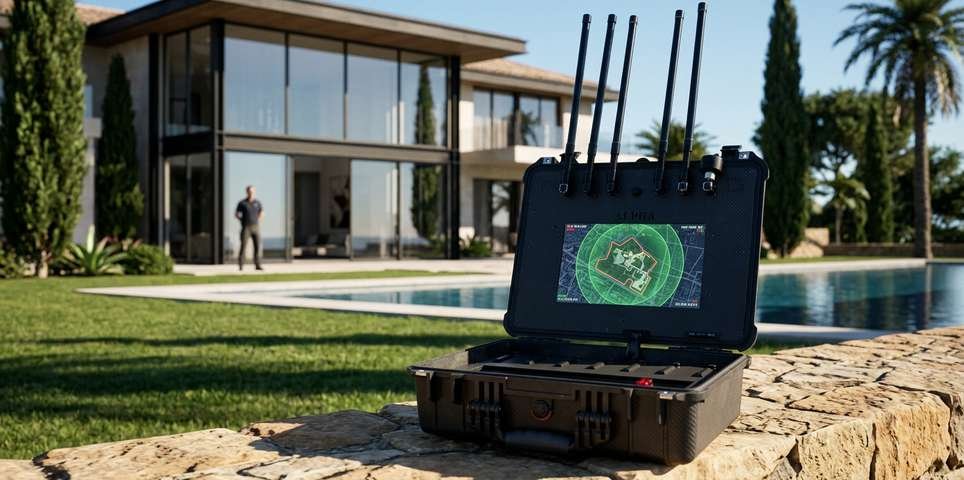

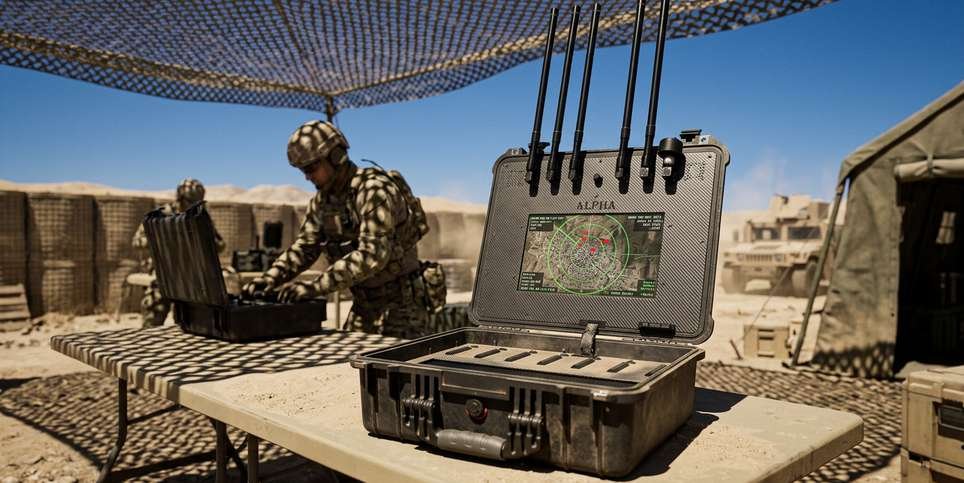

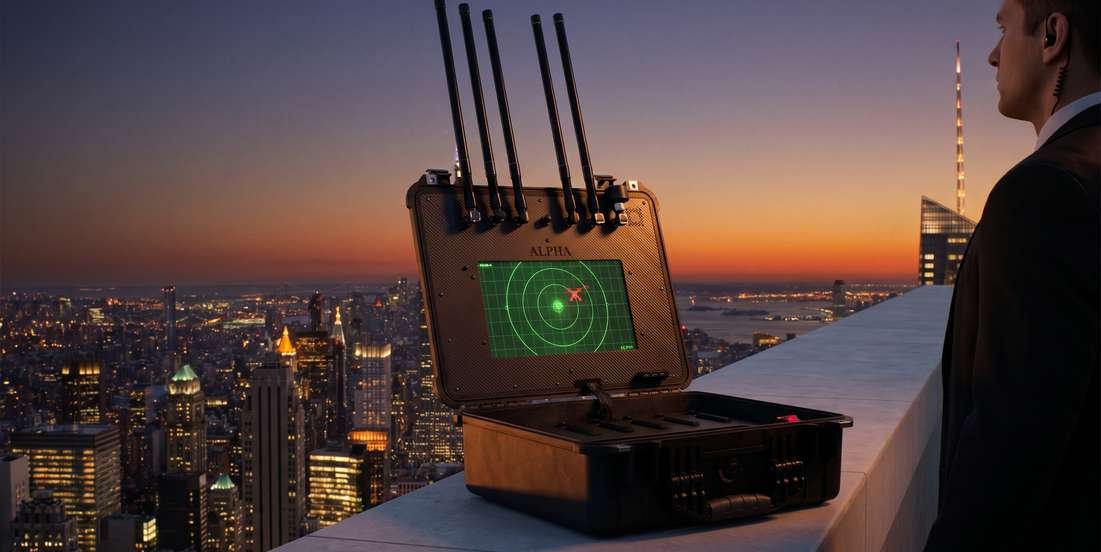

Alpha jammer overlooking a city skyline at dusk Alpha jammer deployed by soldiers in the field Close-up of the Alpha carbon-fibre case controls and map display Alpha jammer deployed at a private residence
Electronic Countermeasures

Omega Smart Jammer

Portable Handheld RF Jamming System — Rapid Deployment

Omega is AeroGuard's frontline soft-kill countermeasure — built for rapid, single-operator deployment. Its ergonomic rifle-style form factor allows intuitive handling and instant activation with no specialist training, targeting the command-and-control and video links of commercial UAS platforms across all key frequency bands.

A high-gain directional antenna concentrates jamming energy precisely on the threat, minimising interference with surrounding infrastructure — making Omega suitable for dense urban environments and sensitive facilities. When paired with Oracle, Omega delivers a fully automated response chain in under 1.5 seconds, faster than any human operator.

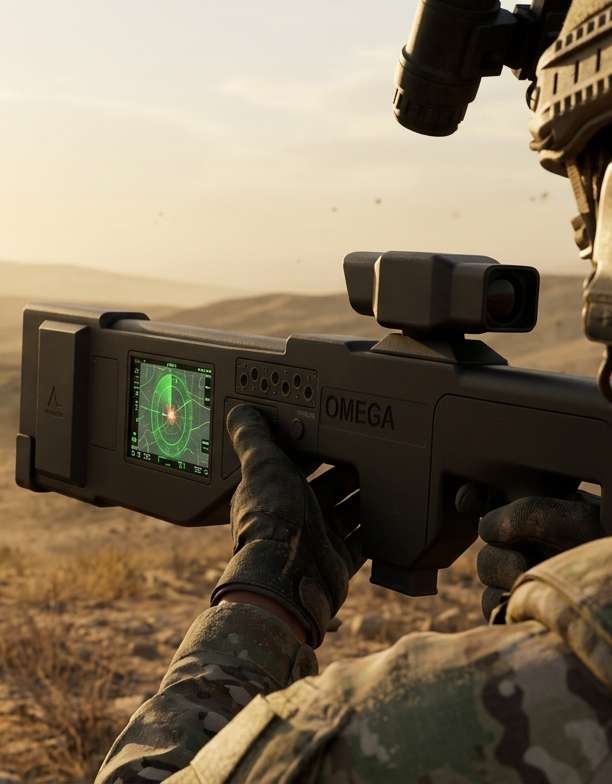

Soldier aiming the Omega rifle-style jammer at a target

Key Capabilities

  • Targets 433 MHz, 900 MHz, 2.4 GHz & 5.8 GHz bands
  • Directional antenna — focused jamming, minimal spillover
  • Instant activation — single operator, < 3 second deploy
  • Effective range 500 m – 1.5 km (output dependent)
  • Optional GPS L1/L2 spoofing module
  • Ergonomic rifle-style form factor
  • Rechargeable LiPo — ~1.5 hours continuous operation
  • No kinetic risk — safe for dense environments
  • ORACLE threat-cued targeting integration
  • Configurable per-band output power

Technical Specifications

Form FactorHandheld / shoulder-supported
Target Bands433 MHz, 900 MHz, 2.4 GHz, 5.8 GHz
Effective Range500 m – 1.5 km (LOS)
Output Power10 W per band (adjustable)
Battery Life~1.5 hours continuous
Weight~2.8 kg (incl. battery)
Activation Time< 3 seconds
AntennaDirectional Yagi / flat panel
GPS Spoof ModuleOptional add-on
Operating Temp-10°C to +50°C
ComplianceOperator licence dependent — jurisdiction varies
ORACLE IntegrationThreat-cued targeting supported

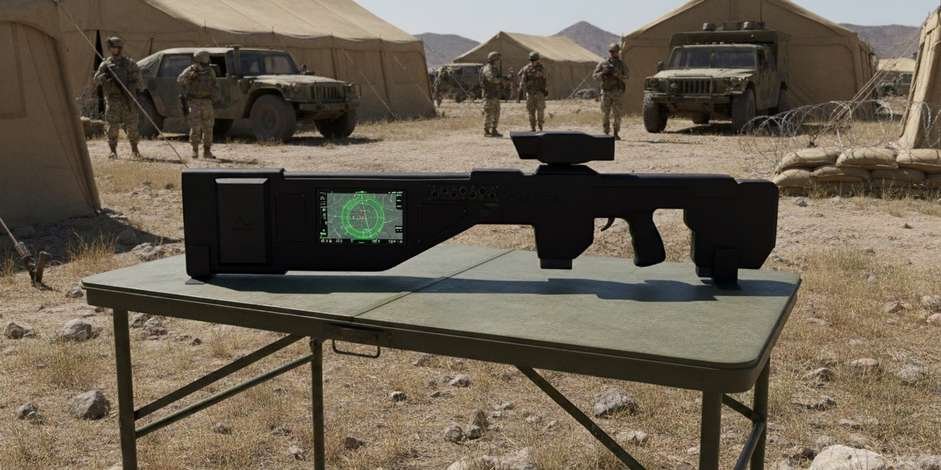

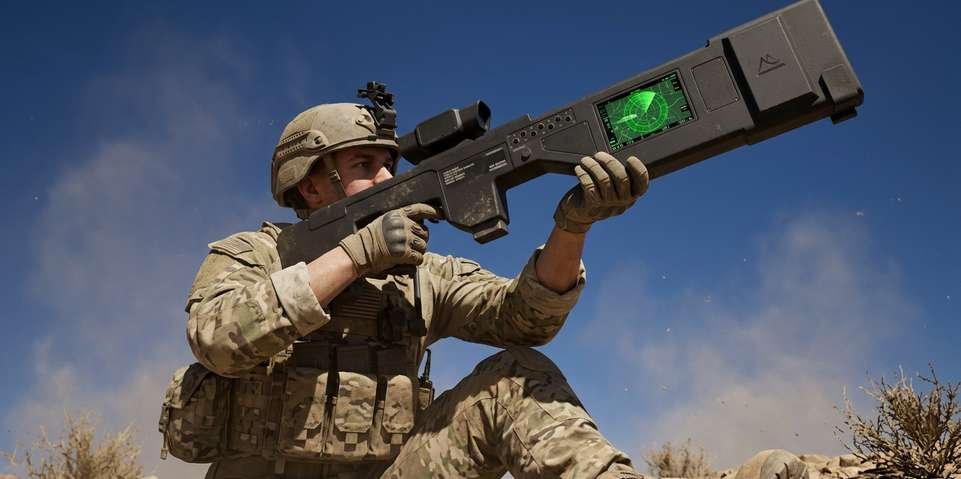

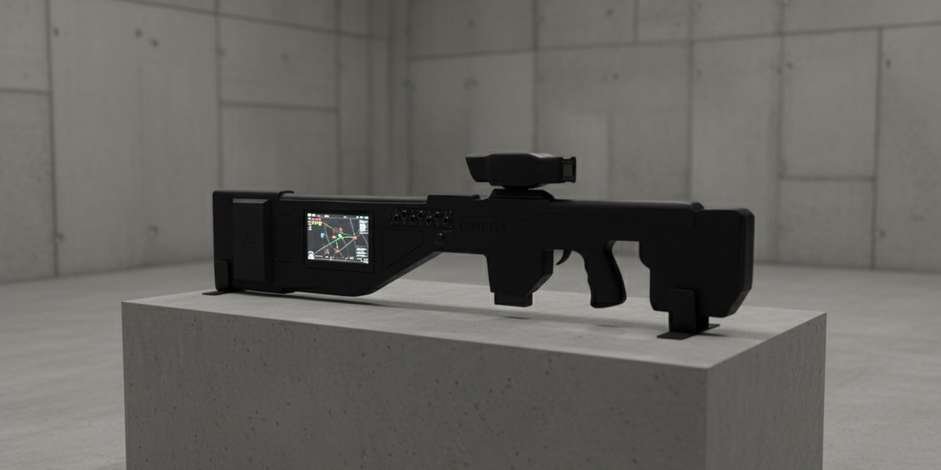

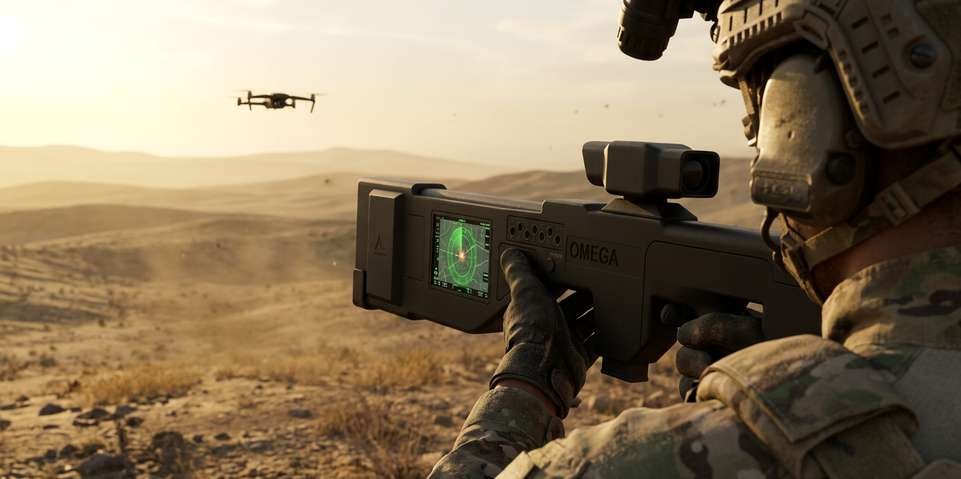

Soldier deploying the Omega jammer prone in the desert Soldier aiming Omega at a drone target Omega jammer on display against a concrete wall Omega jammer laid on a table at a forward base camp
03 · UAV Platform / ISR

Airborne extension.

Eagle Eye lifts AeroGuard's ground sensor network into a three-dimensional airspace picture.

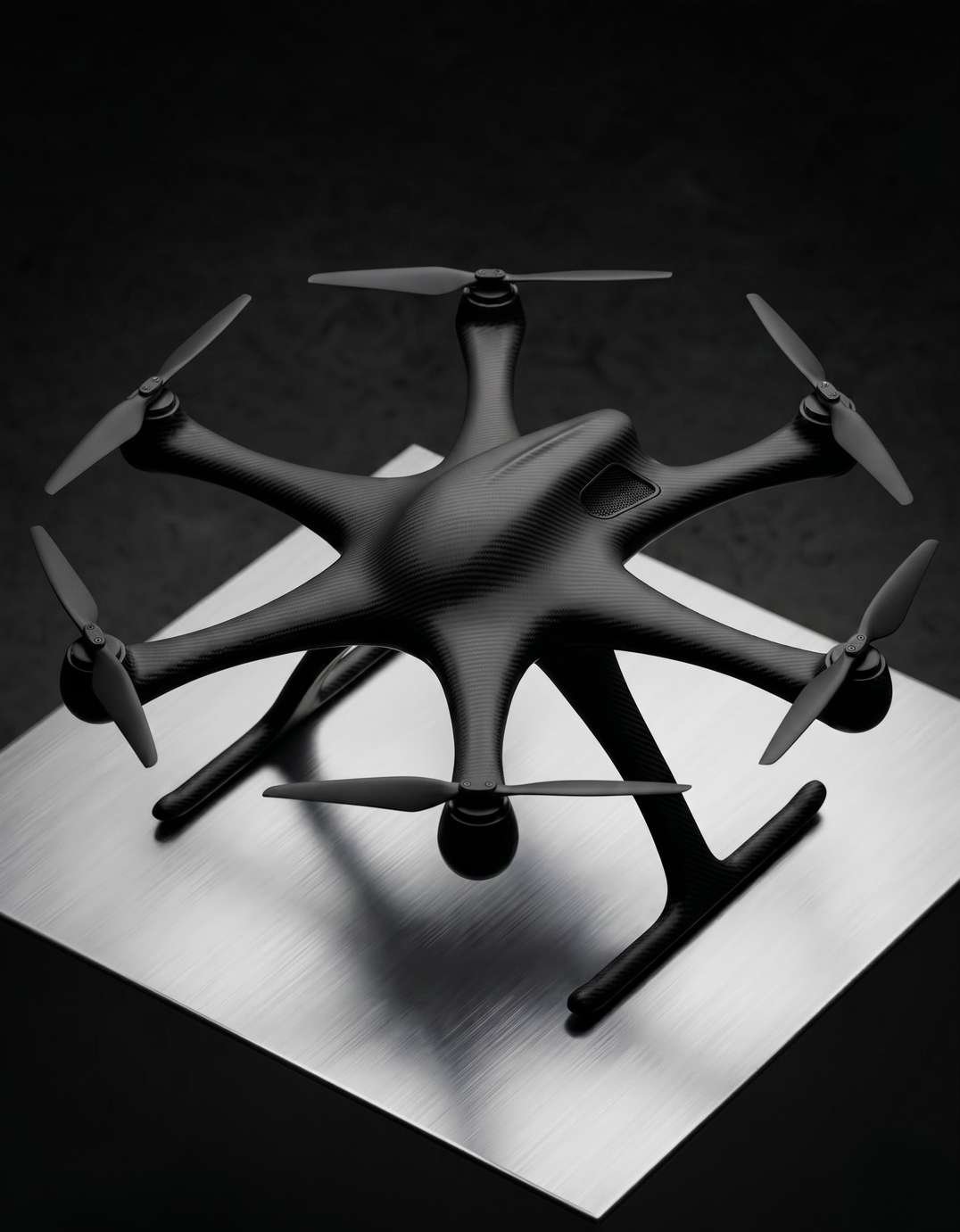

Eagle Eye hexacopter UAV on a reflective platform
UAV Platform / ISR

Eagle Eye

Long-Endurance Hexacopter ISR Unmanned Aerial Vehicle

Eagle Eye is AeroGuard's proprietary hexacopter ISR UAV — built for extended-range perimeter surveillance, border monitoring, and aerial rapid-response operations. A beyond-visual-line-of-sight encrypted datalink and autonomous waypoint navigation let it execute pre-planned surveillance routes with precision, freeing operators to focus on analysis rather than piloting.

A modular payload bay accepts electro-optical, infrared, and multispectral sensors, and the hexacopter configuration means vertical takeoff and landing from virtually any surface. Integrated with the ORACLE sensor network, Eagle Eye turns ground-level detection into a true three-dimensional airspace picture.

Key Capabilities

  • BVLOS capable — encrypted C2 datalink
  • Endurance: 90+ minutes on standard payload
  • Modular EO / IR / multispectral payload bay
  • Autonomous waypoint, loiter & rally-point navigation
  • Live HD encrypted video downlink
  • Auto Return-to-Home (RTH) failsafe on link loss
  • Low acoustic and thermal observability
  • Vertical takeoff and landing — no runway required
  • ORACLE GCS overlay — sensor fusion display
  • Salt/humidity resistant composite airframe

Technical Specifications

Endurance> 90 minutes (standard payload)
Operational RangeUp to 50 km radius (BVLOS)
Cruise Speed65–90 km/h
Max Speed120 km/h
Payload CapacityUp to 800 g (modular bay)
MTOW~3.2 kg
DatalinkEncrypted 900 MHz / 2.4 GHz
Operating AltitudeUp to 3,000 m ASL
Video StreamHD AES-256 encrypted downlink
Deployment2-person crew, field deployable

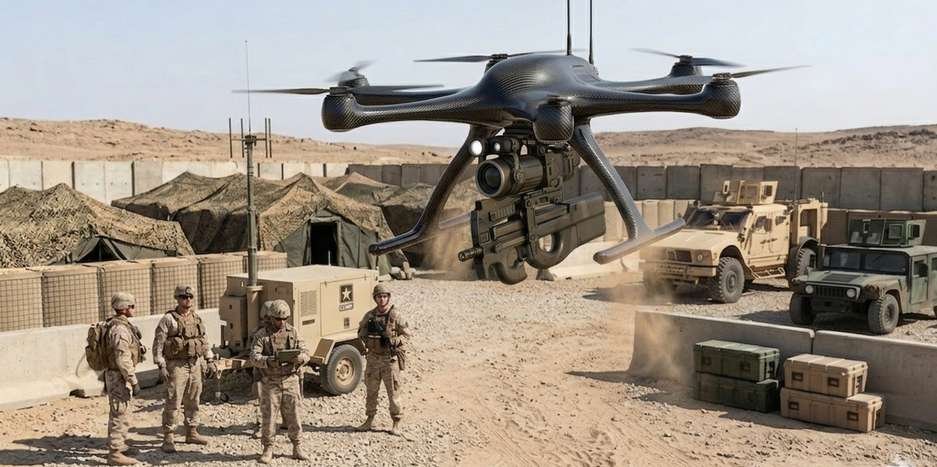

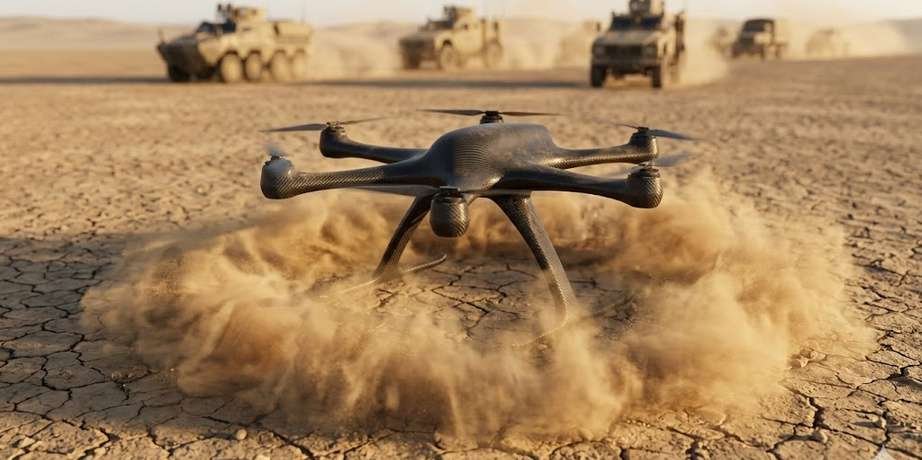

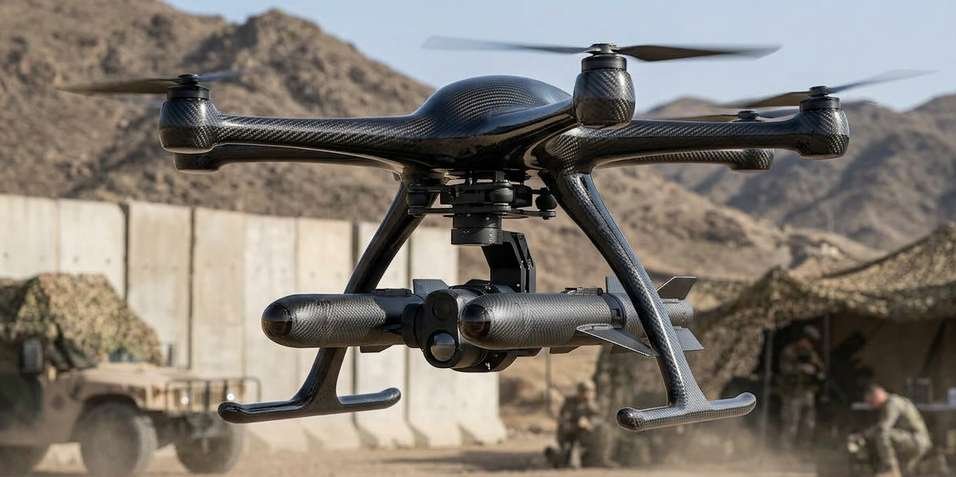

Eagle Eye hexacopter launching at a forward base with soldiers observing Eagle Eye hexacopter in flight kicking up dust near vehicles Eagle Eye hexacopter hovering low over cracked desert ground Eagle Eye hexacopter with sensor payload near a security checkpoint
